Surgut Power Plant - 2x400MW Natural Gas Combined Cycle

Surgut / Russia / 2011

Main Contractor : GE - (USA) , Gama Power - (Turkey) Consortium

Start Date : 03/2009

End Date : 01/2011

Electrical Scope Of Works

Installation, testing, pre-commissioing and commissioning works for ;

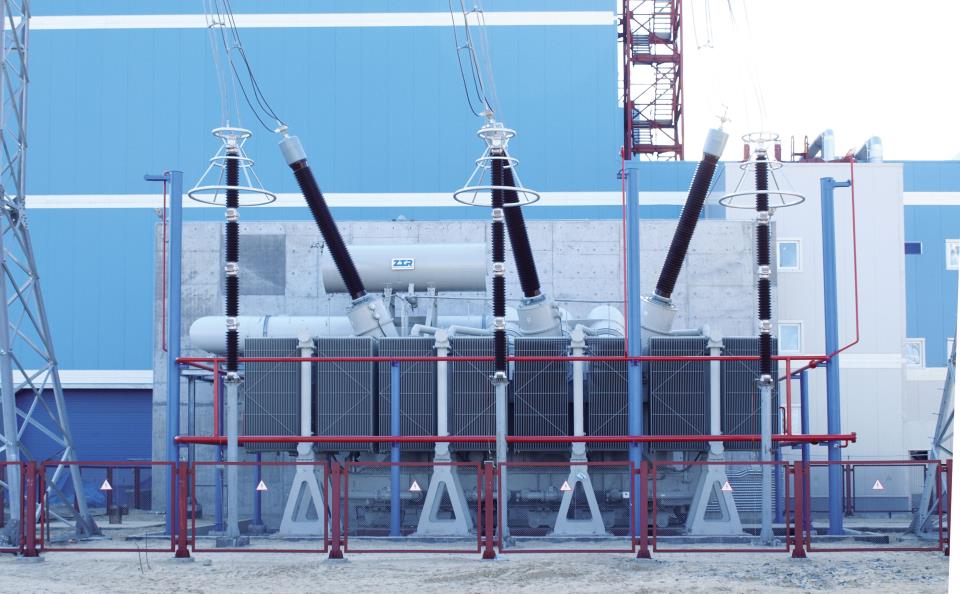

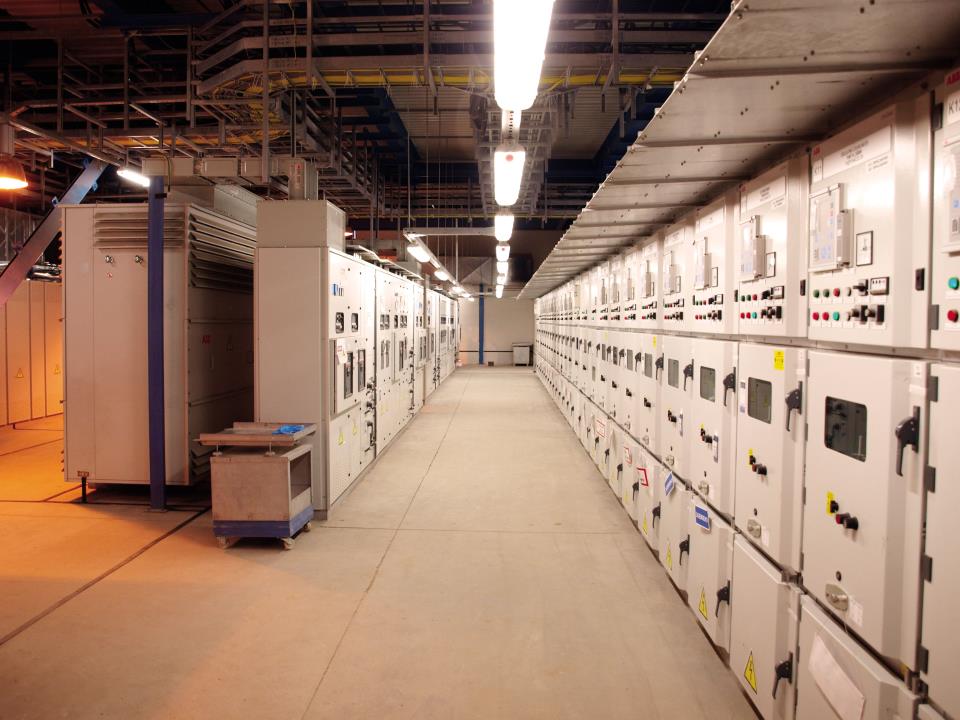

  • MV System
  • LV System
  • DCS System

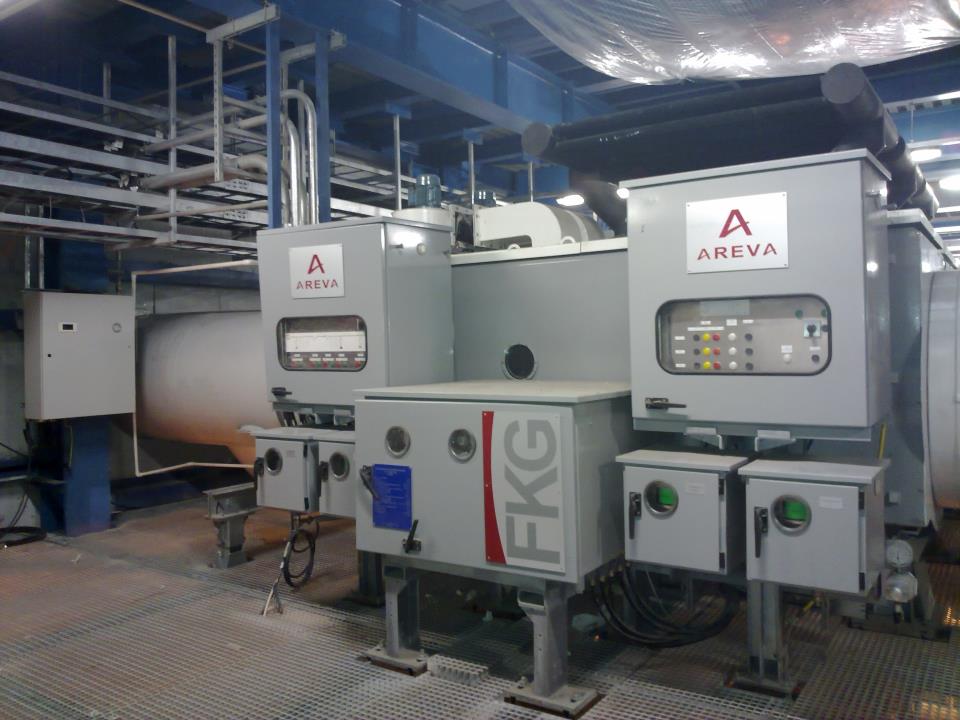

  • Iso Busduct and Generator Circuit Brakers
  • Black Start Generators
  • Heat Tracing System
  • Instrumentation System
  • Lighting System
  • Earthing System
  • Fire Alarm System
  • CCTV and Security System
  • Telephone and Data System



Surgut Power Plant - 2x400MW Natural Gas Combined Cycle
Surgut Power Plant - 2x400MW Natural Gas Combined Cycle
Surgut Power Plant - 2x400MW Natural Gas Combined Cycle Surgut Power Plant - 2x400MW Natural Gas Combined Cycle
Surgut Power Plant - 2x400MW Natural Gas Combined Cycle Surgut Power Plant - 2x400MW Natural Gas Combined Cycle
Surgut Power Plant - 2x400MW Natural Gas Combined Cycle Surgut Power Plant - 2x400MW Natural Gas Combined Cycle

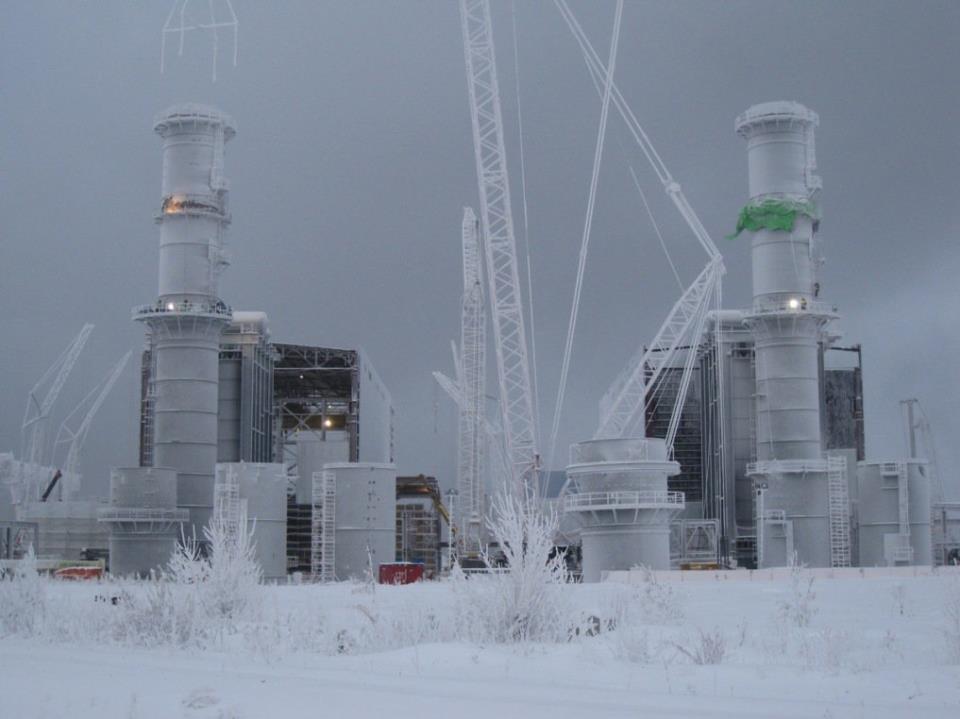

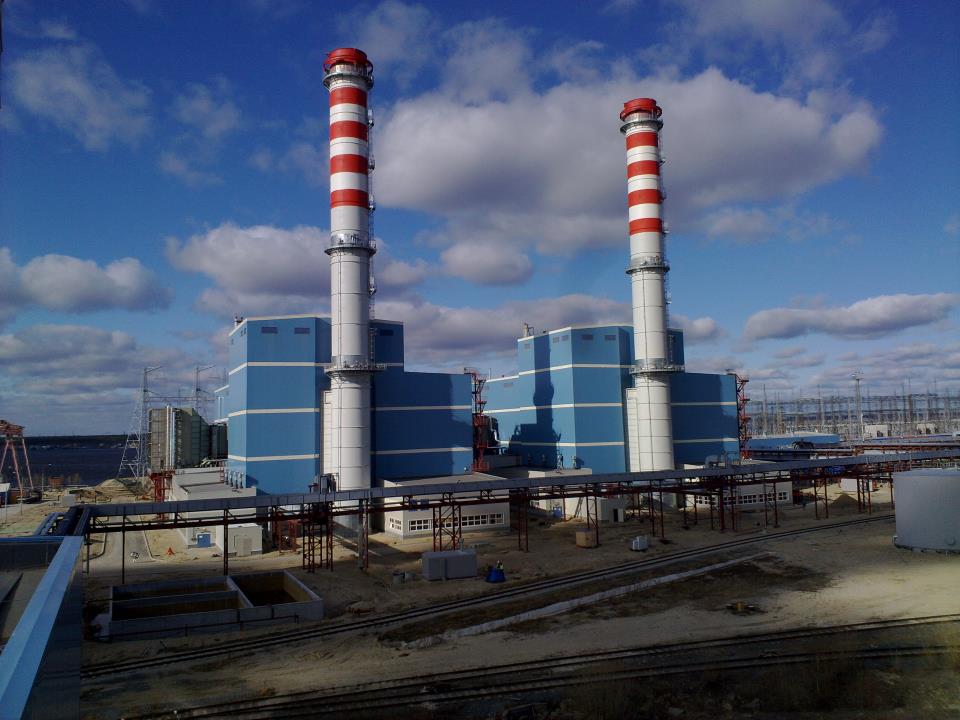

Surgut Power Plant is located in Surgut in Hanti-Mansi region of Russia.

The plant is configured as single shaft with 2x400MW electric output. Each unit has a gas turbine (GE 9FA), a generator (GE 390H), a steam  turbine(GE D10) and a horizontal heat recovery steam generator.

Gas and steam turbines by GE, HRSG by CMI.

Mechanical Scope Of Works

Installation, testing, pre-commissioing and commissioning works for ;

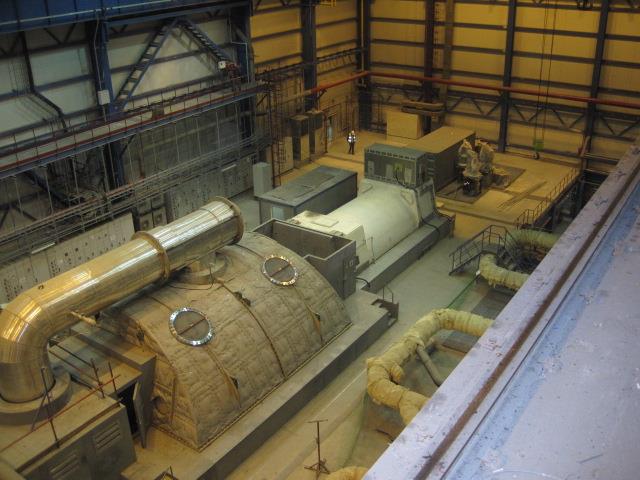

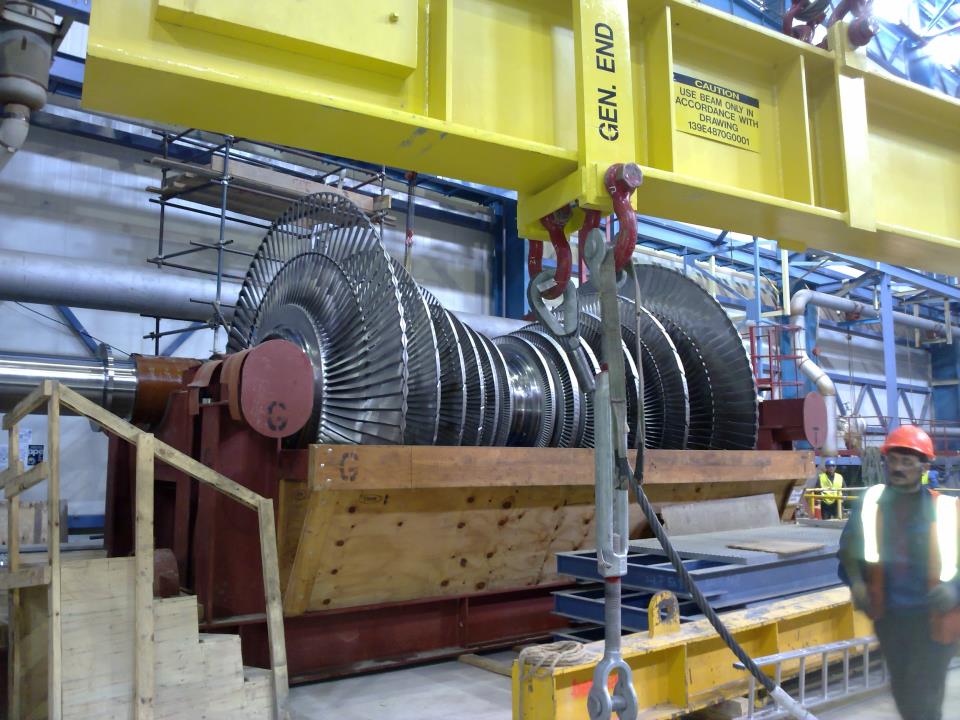

  • Gas Turbine and Steam Turbine Erection

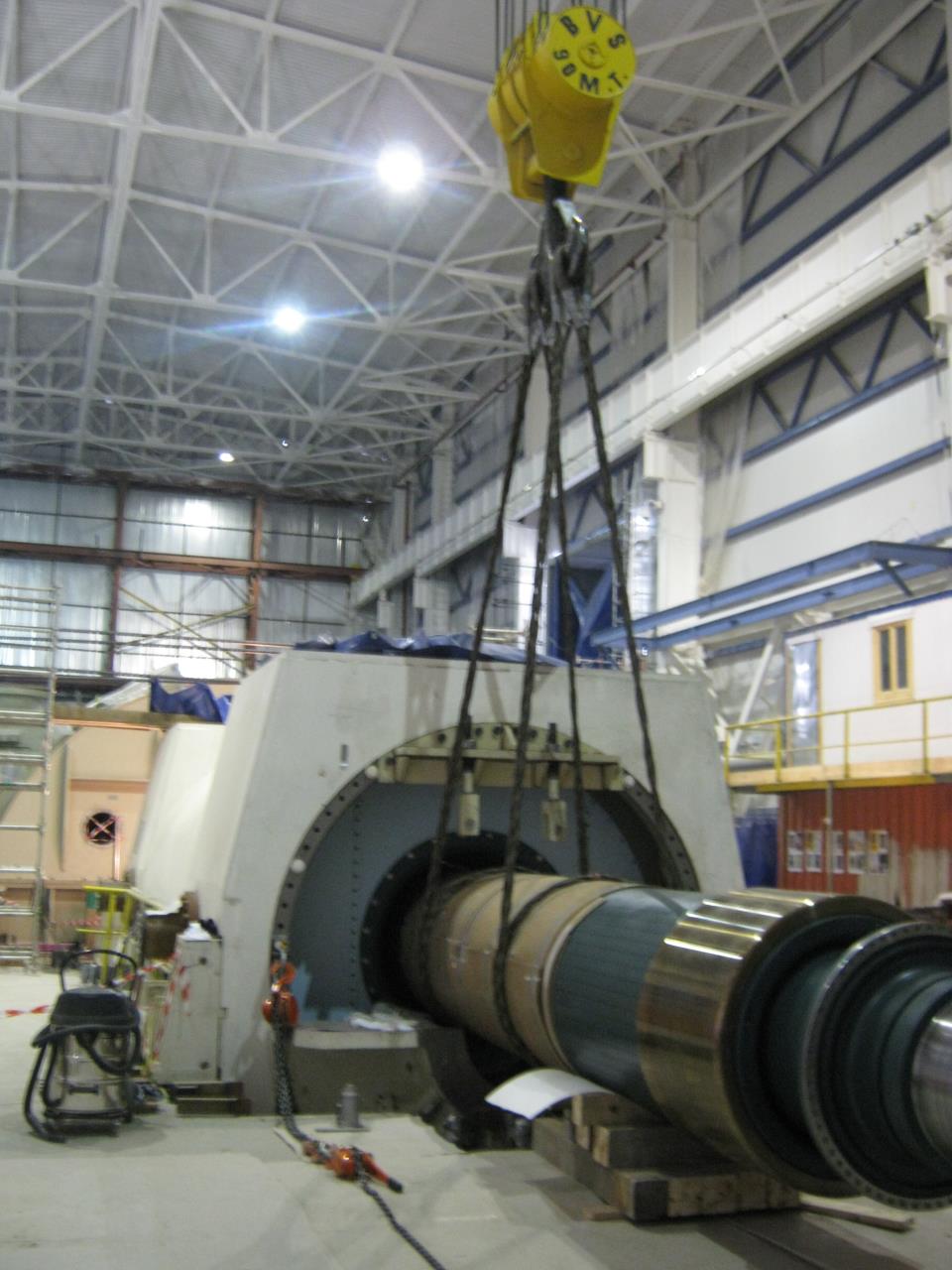

  • Generator Erection
  • Lube Oil System
  • Fuel Gas System
  • Seal Oil System
  • CO2 System
  • All Piping Works for Gas Turbine and Steam Turbine
  • Air Inlet and Air Filter System
  • Condenser System
